Cal Check–A/B
Cal Check – A/B

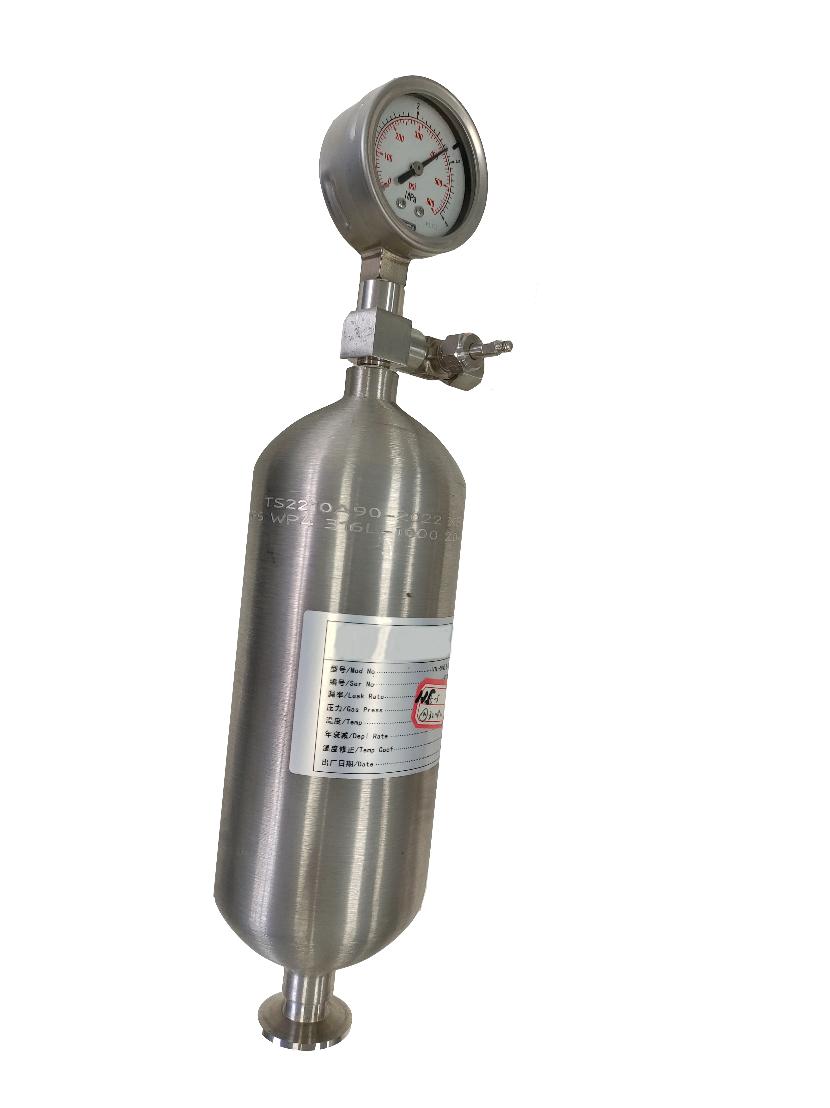

This product is ChillMirror's newly developed standard leak hole, which can be accurately calibrated for PPb level leakage, and can be used in vacuum and atmospheric environments.
Features
Different concentrations can be configured for non-corrosive gases
■ Sulfur hexafluoride
■ Helium
■ Hydrogen
■ Isobutylene
■ R134a
■ R22
■ R101
■ R600a
Classic application
■ SF6 leak detector calibration
■ Helium mass spectrometer calibration
■ Vacuum chamber calibration
Working principle
Channel type leakage belongs to the real leakage type leakage, the leakage element is the leakage channel of physical throttling, all gas components can be passed, generally pure gas is used, in order to obtain the required gas leakage rate, this product Cal Check – A type is positive pressure leakage, Cal Check – B type is vacuum leakage

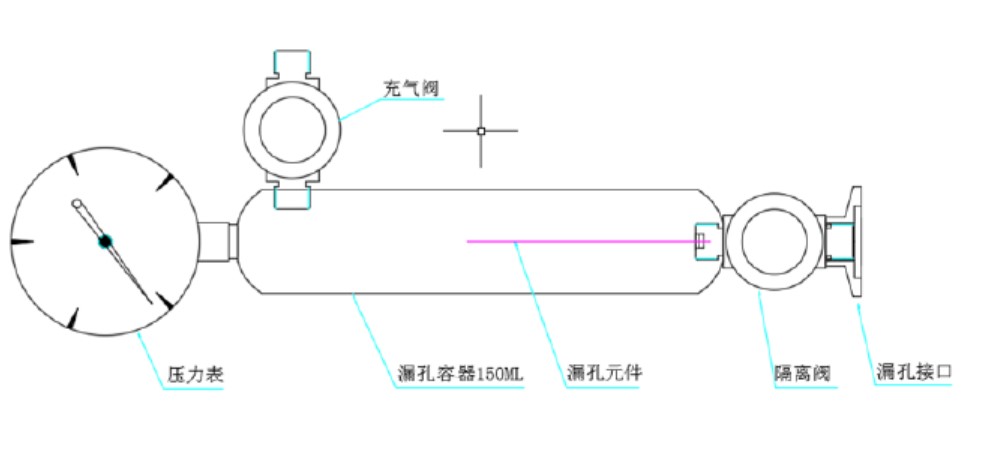

Schematic diagram of the structure
Technical specifications
Technical Spec: | |
Fill with gas | SF6、He、H2、Isobutylene、R304A、R22、R101、R600A |
Leak rate range | 10-4~10-8 cc/sec |
Allowable deviation of the indicated value | ±15% |
Temperature compensation | ＜0.3%/℃ |
Leaky originals | Microchannel tubes |
Isolation valves | Manual (optional) |
Interface | Customizable |
Outlet pressure | atmospheric pressure or vacuum |
Air chamber volume | 150ml、500ml |
Inflation pressure | Refillable and inflatable |
Pressure | -100kPa~ 10MPa |
Annual decay rate | （Valve normally open) see label for details |
Order # | Cal Check – Gas - Leakrate |
