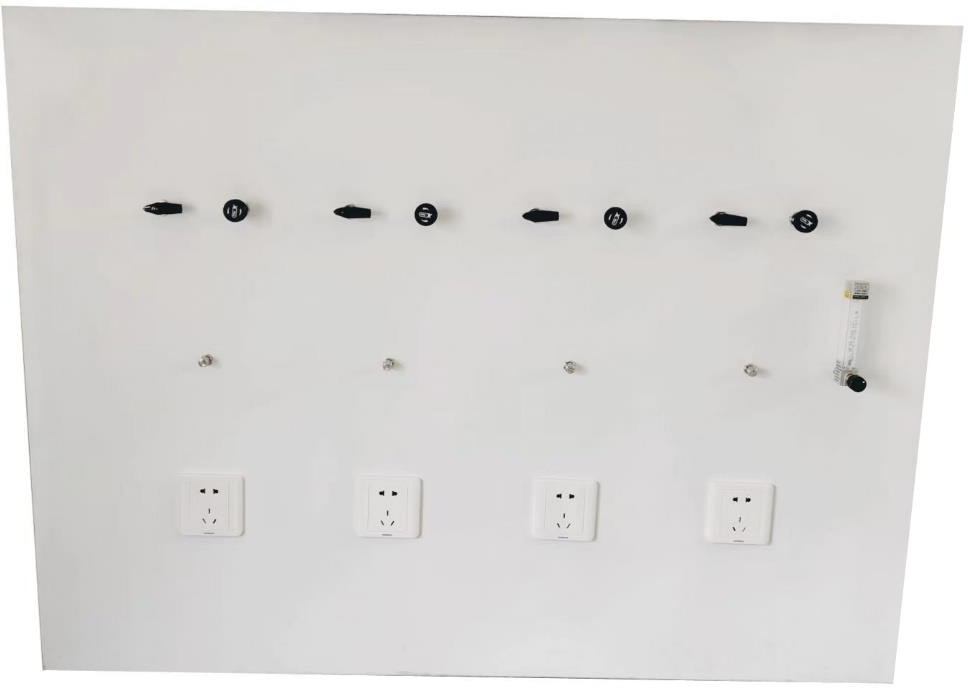

HGD21 Frost/dew point gas distribution cabinet

Frost/dew point gas distribution cabinet

— Hermetically sealed design to prevent gas leakage

— Dry air purging and humidity measurement are optional

— High-precision control valves

— Highly polished Swagelok stainless steel tubing

— 1 to 4 (scalable)

— Four-way power outlets (expandable)

— Top floor LED lighting (extendable)

— Outlet float flow meter for better monitoring of flow and pressure


Features

■ Maximize efficiencyUtilize the humidity generator to improve work efficiency

■ Improve the overall image of the humidity laboratory, which is more tidy, bright and convenient


Classic application

■ Temperature and humidity laboratory

■ Hygrometer manufacturer


Working principle

The HGD21 uses two inlet airs, one for high-purity nitrogen and the other for moisture from a standard humidity generator. With the adjustment handle on the instrument panel, we can freely select the wet/dry gas switch for each device under test without affecting the measurement of other devices. Precision metering valves ensure stable and adjustable sample flow, swagelok high-polished stainless steel tubing allows humidity to occur faster, and HGD21 can be illuminated with optional LED tubes, making the laboratory brighter and cleaner.


Technical specifications

  Technical Spec:


  Inlet pressure

100…400kPa


  Outlet pressure

100…200kPa


  Tubing connections

3mm American-style card holder


  Size

1200*900*200mm

  Order #

HGD21
