SF6 LaserCheck HD/WD
SF6 红外激光检漏仪

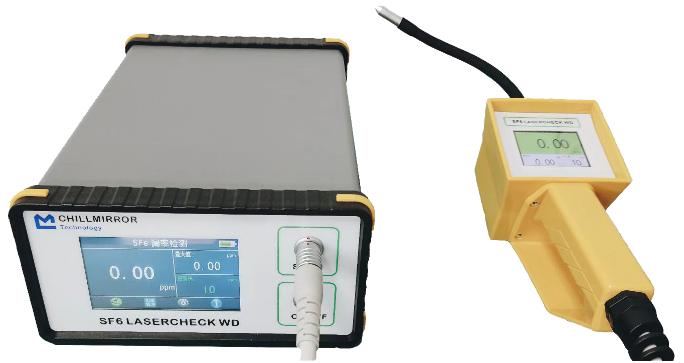

The CHILLMIRROR SF6 LaserCheck Model HD/WD
The SF6 infrared laser Analyzer is designed for the most important and demanding SF6 gas leak detection applications. THE SF6 LASERCHECK HD/WD uses CHILLMIRROR's proprietary c•cal algorithm in a field-proven real-world design to provide testing flexibility, high sensitivity, and fast and accurate results, making any leak detection application quick and easy. the SF6 lasercheck hd/wd has a fast response time in all measurement ranges and achieves test results in a short time. The specially designed suction structure provides the constant pumping speed and fast response time you need.
Features
• Ultra-high sensitivity
With the new generation of NDIR non-spectroscopy infrared laser principle, the SF6 LaserCheck HD model can detect leaks in the 0.01ppm range at the fastest possible speed.
• Cost-effective
Equipped with a durable infrared laser pump with a one-year warranty, it reduces the total cost of ownership
• Easy to use and integrate
Featuring a compact design, the flexible, curved probe provides easy access to space-constrained service areas
• Convenience of high-altitude detection
The lightweight and smart host can bring more flexibility, making high-altitude detection safer and more convenient
• No influence of environmental SF6 gas
Absolute measurement mode is used for higher accuracy regardless of the error caused by the presence of SF6 in the environment
• No radioactive sources
No argon calibration is required and no nickel-63 radioactive source
• Low maintenance
Probe-free time-free settings significantly reduce equipment maintenance costs
• Simple and friendly calibration setup
Easy zero calibration and SF6 standard gas calibration
Classic application
Leak Test User:
• Power maintenance companies, power transmission and transformation companies, power plants
• High voltage switch manufacturer
• Spare parts, semi-finished products and tanks for GIS
Technical specifications
Item | Order # |
SF6 LaserCheck WD | LC-100-001 |
SF6 LaserCheck HD | LC-100-002 |
Accessories | |
Test pistol with 2m cable | LC-200-001 |
200mmBendable flexible probe | LC-200-002 |
2mPower cord | LC-200-003 |
12.6VPower adapter | LC-200-004 |
1.3mBlack strap | LC-200-005 |

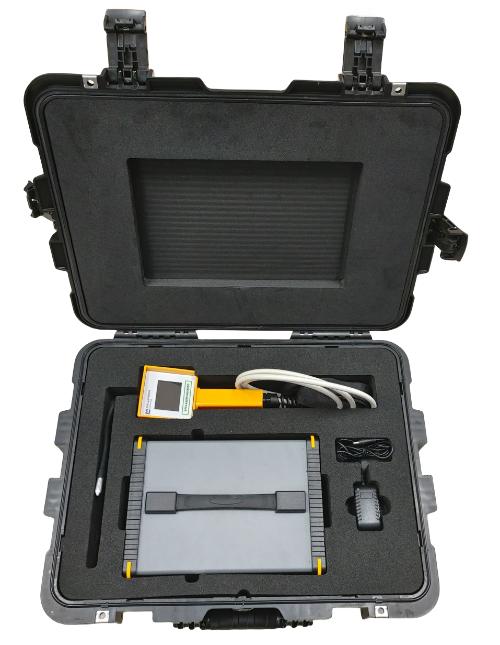

Sturdy transport case with foam | LC-200-006 |
More information

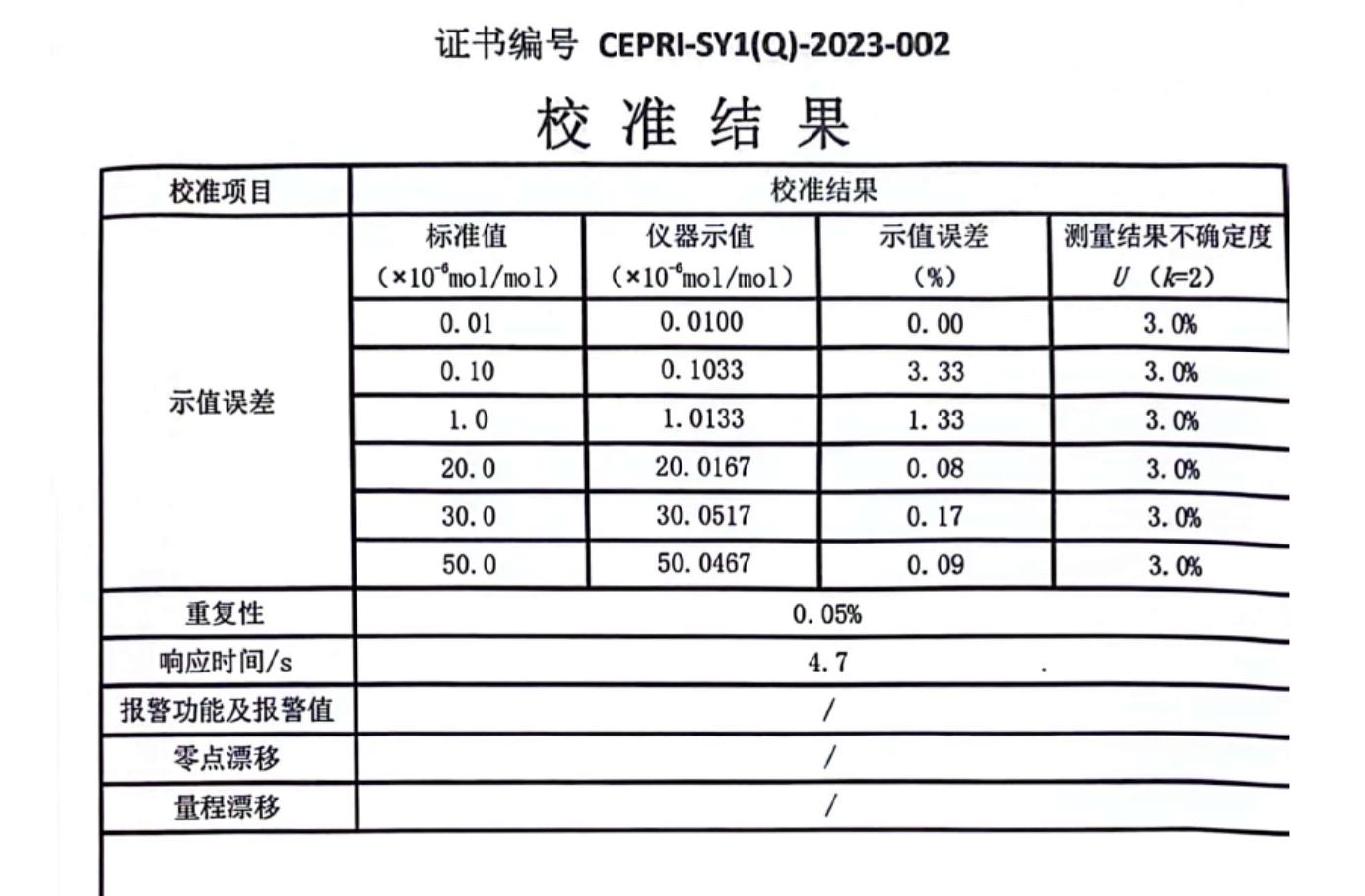

China Electric Power Research Institute SF6 LaserCheck HD Calibration Certificate
SF6 LaserCheck HD/WD

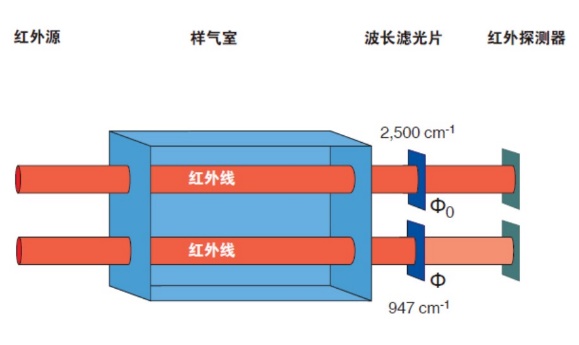

Dual-channel non-dispersive infrared principle
Non-Dispersive Infrared Technology (NDIR) is a method based on the theory of gas absorption. After the infrared radiation emitted by the infrared light source is absorbed by a certain concentration of the gas to be measured, the spectral intensity proportional to the gas concentration will change, so the change in spectral light intensity can be used to invert the concentration of the gas to be measured.

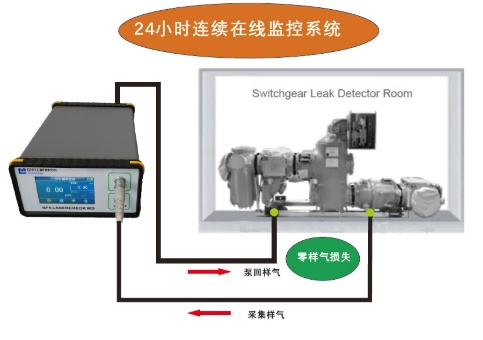

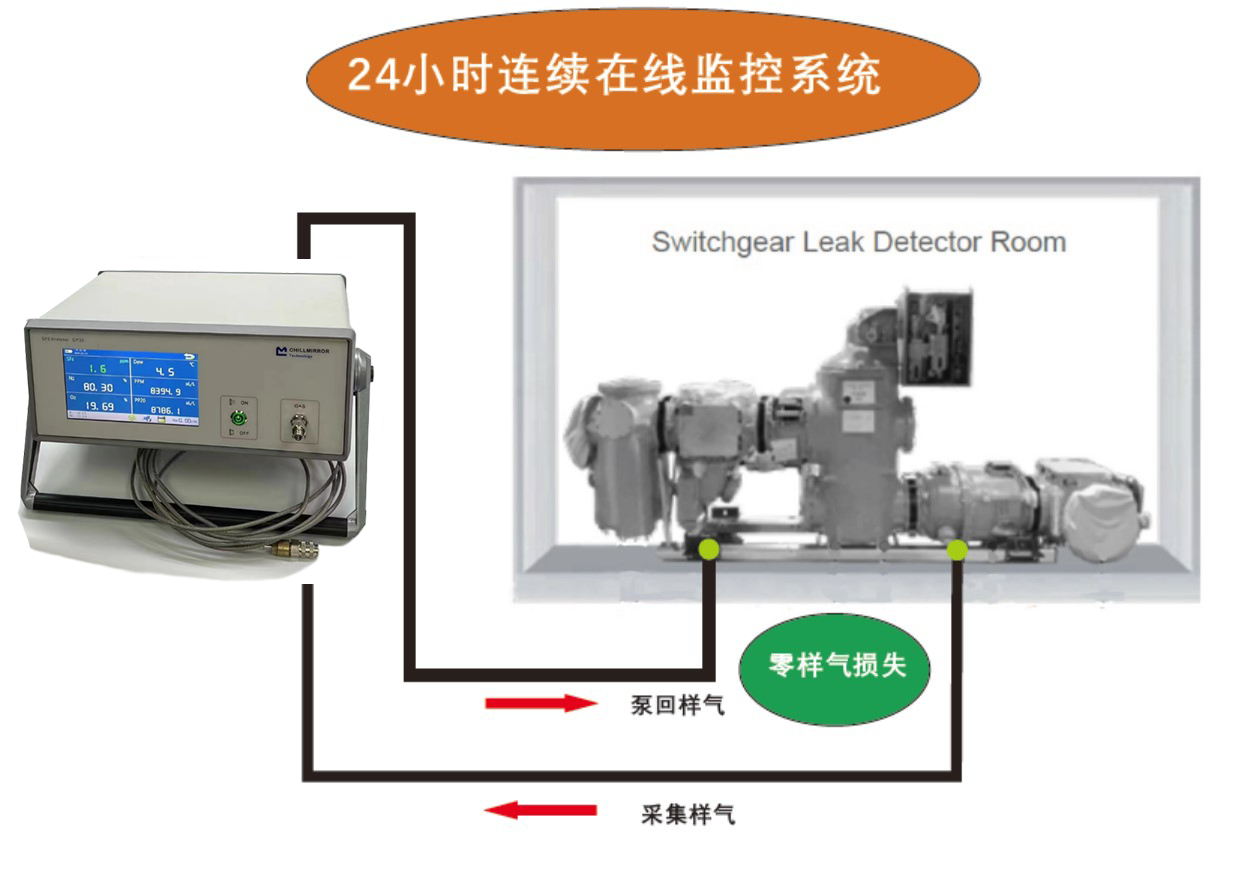

Bell type SF6 overall leak detection scheme
System features:
Ø Cloud host computer software
Ø 24-hour online monitoring
Ø ppb level detection accuracy
Ø Automatic circulation of sample gas, zero sample gas loss
Ø 8/16 digit multi-bit monitoring optional

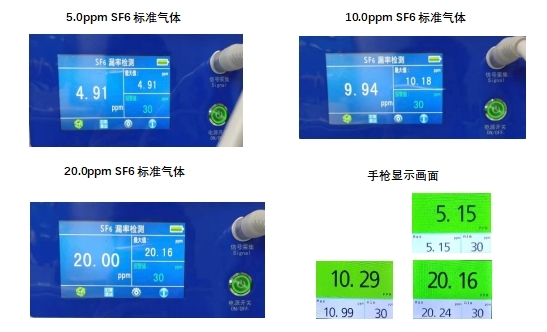

SF6 LaserCheck WD Footage of laboratory measurements
