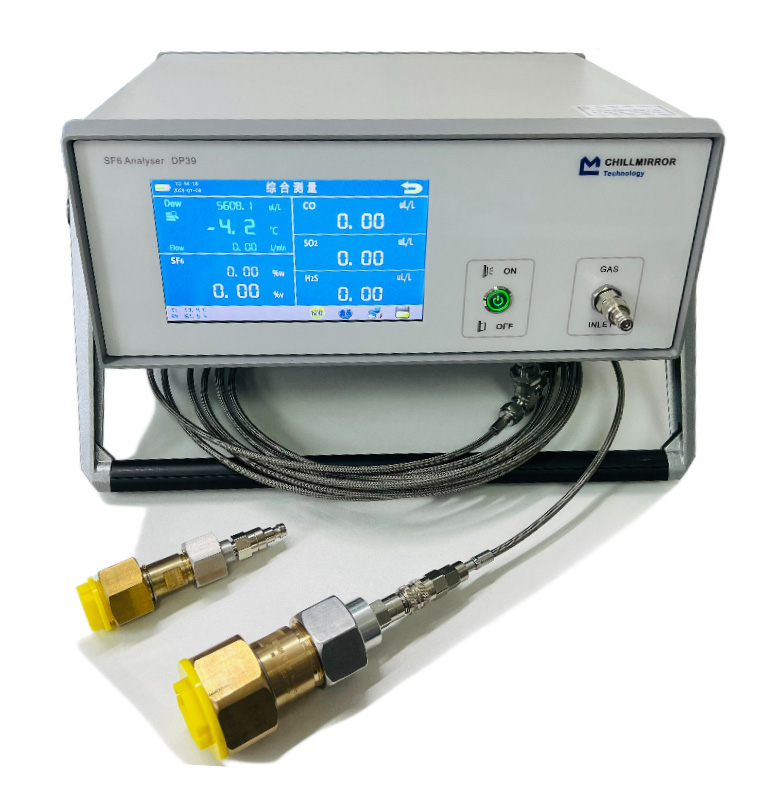

DP39 series SF6

水分仪以及综合分析仪

The DP39 series SF6 analyzer is an innovative and reliable series of products specially designed for the preventive testing of SF6 gas electrical equipment in power systems. The DP39 series is divided into five models: DP39-A, DP39-SF6, DP39-V5, DP39-EPSF6 and DP39-EPV5, which can better adapt to the SF6 gas test in various scenarios. The DP39 series can test data for up to 5 parameters, including moisture, purity, SO2, H2S, CO, depending on the selected model. The DP39-EPSF6 and DP39-EPV5 are two environmentally friendly devices that allow the measured ground gas to be pressed into a switchgear or an external cylinder. Each of these measures prevents SF6 gas from escaping into the atmosphere, better protecting the health of our field workers and caring for our planet.

Features

  • Multiple types of equipment can provide solutions for different scenarios

  • Provides measurements of moisture, purity, and decomposition products

  • Two methods of handling the measuring gas (no leakage)

    Ø Directly press the gas back to the chamber to be measured

    Ø Press the gas into the external cylinder

  • Test results can be printed directly

  • Powered by large-capacity lithium battery

  • Remote wireless online monitoring (by the end of 2023)


Classic application

Analysis of SF6 inside a high-pressure SF6 cylinder

SF6 is analyzed in all electrical equipment filled with SF6 gas, including moisture, purity, SO2, H2S, CO


Technical specifications

Item

Order #

DP39-V5

DP-100-001

DP39-EPV5

DP-100-002

DP39-EPSF6

DP-100-003

DP39-SF6

DP-100-004

DP39-A

DP-100-005

Accessories


6m armoured sampling tube with self-sealing joint

DP-200-001

DN8  Self-sealing fittings

DP-200-002

DN20 Self-sealing fittings

DP-200-003

Self-sealing connector box (connector kit for major switch plants)

DP-200-004

IP65 shockproof protective case with foam

DP-200-005
