PA1000 SF6 AIR/N2
内置式压缩再生气源
CHILLMIRROR PA1000is a portable density relay calibrator with excellent design. A wide range of gases are available, SF6, AIR/N2, SF6, C4. The pressure accuracy level can be up to 0.05 class, the high-pressure/low-pressure range can be switched, the built-in compressed air source can be connected to the cylinder. Vacuum recovery gas is optional. And the external PT100 temperature sensor, the accuracy is as high as ±0.3°C.
Features
• Pressure accuracy class 0.15 (can be upgraded to class 0.05)
• Multiple gases available: SF6, AIR/N2, SF6, C4
• High integration, high intelligence, easy to carry
• Automatic switching of high and low pressure density gauges (optional)
• Built-in compressed air source, built-in pump, easy to operate
• External cylinder (optional)
• Vacuum recovery gas (optional)
• External PT100 temperature sensor, accuracy ± 0.3°C
• Single measurement time< 3min
Classic application
Leak Test Object:
• On-site maintenance of large GIS switches
• High and low voltage switch manufacturers and density relay manufacturers
Technical specifications
Technical Spec: | PA1000 | |
Pressure | ||
Measuring range | 0~1Mpa | 0~0.25Mpa |
Precision | 0.15级 | 0.05级别 |
Margin of error | ±0.0015Mpa | ±0.000125Mpa |
Resolution | 0.0001Mpa | |
PT100Temperature sensor | ||
Measuring range | 0~100℃ | |
Precision | ±0.3℃ | |
Resolution | 0.1℃ | |
Contact resistance | ||
Measuring range | 0~25Ω | |
Measurement accuracy | ±5%FS | |
Resolution | 1mΩ | |
Time for a single measurement | ＜3min | |
Density meter gas type | SF6、AIR/N2、CO2、C4 | |
Built-in pump | Yes | |
Built-in gas tank | Yes | |
Evacuation device | Optional | |
Dual-range | Optional | |
External cylinders | Optional | |
Verify the object | Any combination of single alarm/latch, alarm + latch-off + overpressure | |
Type of pressure | Absolute pressure, relative pressure | |
Display mode | 800×480 Graphic color LCD screen | |
Printer type | High-speed thermal micro printer | |
Calibration certificate | Original calibration certificate: certificate of East China Institute of Metrology | |
Operating/storage temperature | -20℃-50℃ | |
Operating humidity | ≤90%RH | |
Operating voltage | lithium battery、or AC220V/50Hz | |
Lithium battery capacity | 8000mAH | |
Battery life | ＞8H | |
Instrument power | 5W( Non-inflated)；Max 20W(Inflated state) | |
Size | 460 mm×380 mm×320mm | |
Weight | 15kg | |
Outer carton protection level | IP20 | |
More information

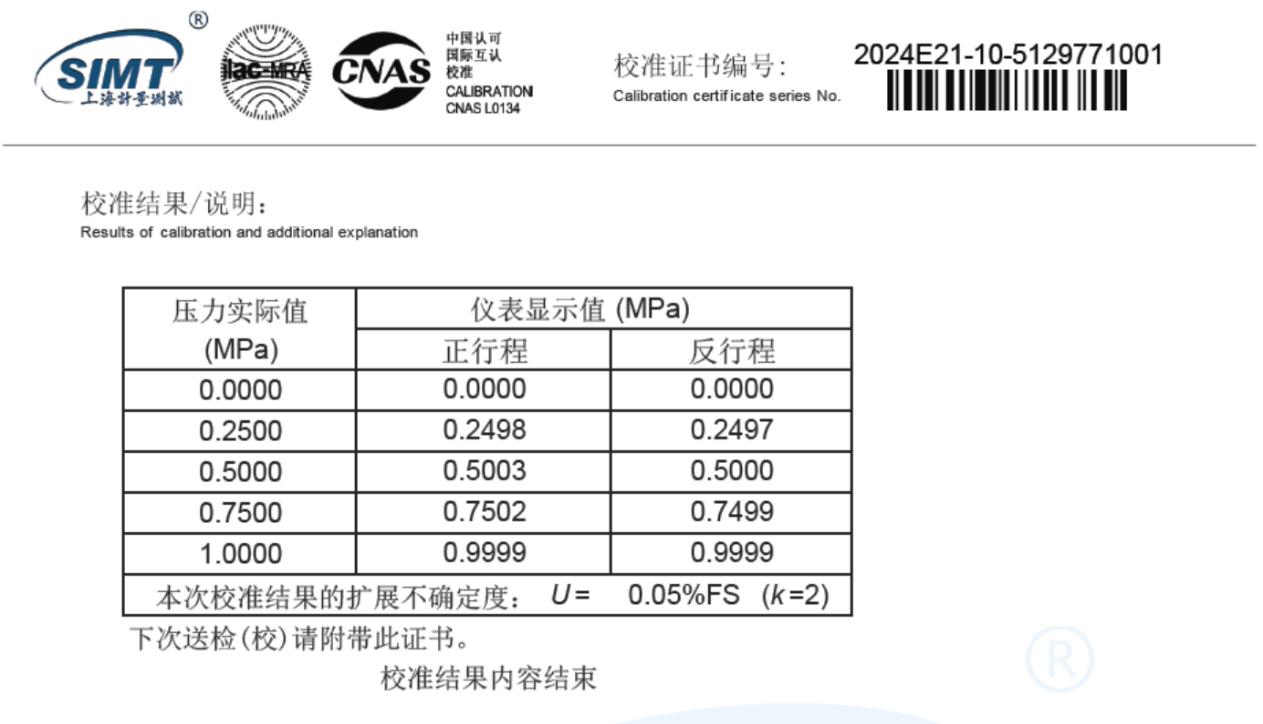

Calibration certificate of East China National Metrology and Testing Center
