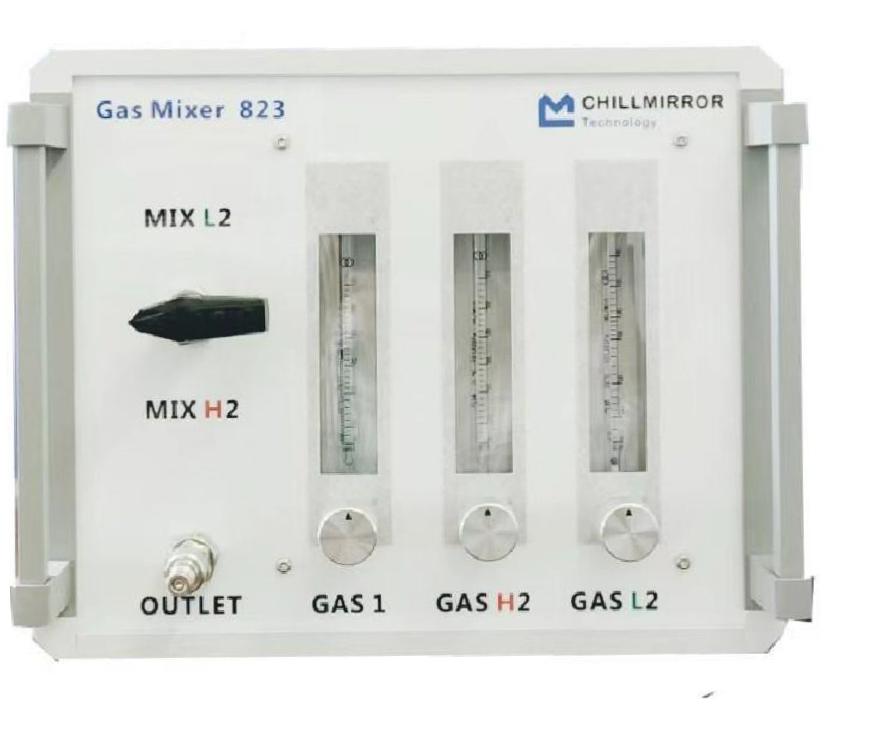

Gas Mixer 823
安全型流量计气体混合仪
Safety flow meter gas mixer
— Hermetically sealed design prevents toxic gases from escaping
— 1%... 100% concentration
— High concentration and low concentration can be adjusted
— Self-sealing fittings for inlet and outlet
— Hermetically sealed sampling tubes
— Safety of personnel and laboratories
— Very cost-effective
Features
■ Security
■ Flexibility
■ Extremely high economic value
Classic application
■ Hazardous Gas Chemistry Laboratory
■ Gas Detection Equipment Manufacturer
■ Precious Gas Ratio
■ Basic research projects
■ Rapid application in the field
Working principle
The 823 adopts two air inlet channels and one gas outlet method to proportionate gas. When the tee handle is down, when MIX H2 is selected, the GAS1 and GAS H2 flow meters will start working. The high-purity air will enter from GAS1, and the standard concentration of proportional gas will enter from GAS H2 to 823, and the concentration can be adjusted by 20%-100% and the flow rate will be 0.5... 1l/min。 When the tee handle is up, when MIX L2 is selected, we can fix GAS1 to 500ml/min, turn off GASH2, adjust GASL2, and we can produce a minimum of 1% of the specific gas.
Technical specifications
Technical Spec: | ||
Ratio range | 1%...100% | |
Inlet pressure | 150…600kPa | |
Outlet pressure | 100…200kPa | |
±10% | ||
Egress traffic | 0.2…1l/min | |
Tubing connections | 自密封快速接头管路 | |
Weight | 3.75kg | |
Size | 270*300*230mm | |
Order # | Gas Mixer 823 | |
